Double flow

Double flow

Evaporating units

Low-profile doble air flow for process room.


Double flow low-profile INTARCON evaporating units are designed to cover a wide range of cooling needs in the most usual constructions. These series are fully equipped with thermostatic expansion and solenoid valves (optionally with electronic expansion valve), as well as aspiration siphon and switchboard electronic control. These units, featuring a new design and previously tested, can be customized with different fin spacing.

These units are especially suitable for mall positive temperature cold rooms, handling and processing rooms and many other high temperature and medium temperature with laminar air flow applications, due to 3 different low-noise fan speed. Are available in configurations:

JD series: Double flow evaporating units in a low-profile construction for high and medium temperature. There are 3 versions, according to the application:

    • AJD-UF: Quasistatic evaporating unit performing a very low speed for minimum air flow demands, e.g. meat. Fin spacing of 6 mm for a cooling capacity range from 2,1 to 9,9 kW.
    • AJD-NF: Double flow evaporating units low-speed, for working rooms where the air-flow intensitity is to be reduced at minimum level to guarantee worker’s health and comfort. Fin spacing of 4 mm for a cooling capacity range from 2,6 to 23,3 kW.
    • AJD-AF: High-speed double flow evaporating units with fin spacing of 4 mm for a cooling capacity range from 3,4 to 27,7 kW.

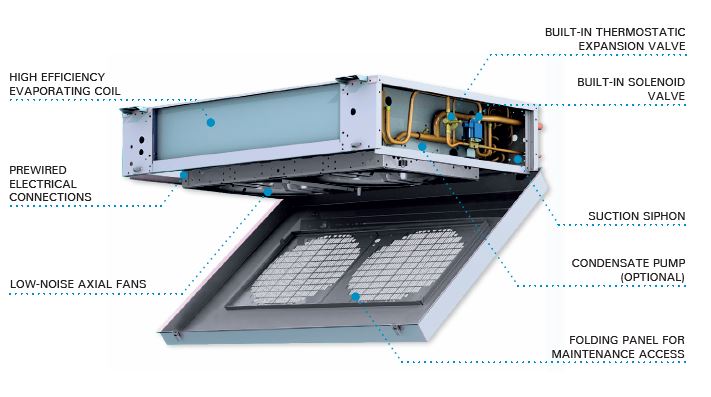

Installation scheme jd

CTA Success story Panamar

  • 230 V-I-50 Hz power supply. Available in 60 Hz. Other voltages by request.
  • Refrigerant R-134a / R-449A.
  • Solenoid valve in liquid line and thermostatic expansion valve, factory adjusted, inbuilt on the unit.
  • High efficiency coils, built in copper pipes and aluminum fins, with 4, 5 or 6 mm fin spacing.
  • Stainless steel folding drain tray.
  • Air defrosting, and optionally heaters in drain tray and imbricated in coil.
  • Flexible drain pipe heater.
  • Low-noise axial motor-fans.
  • Ready-to-solder cooling connections, with inbuilt suction trap.
  • Electronic controller with relays for fan, soilenoid valve coil and electrical heaters, and temperature probes.
  • Electrical heater defrosting.
  • Electronic fan.
  • Electronic expansion valve.
  • Anti-corrosion coil coating.
  • Condenses water pump integrated in unit.
  • Humidification kit
  • Dehumidification and heater kit
  • ATEX fan.
