intarsanit

Covid-19 free



 intarSANIT units helps to combat the transmission of viruses and bacteria in the work area by filtering and sterilizing air and supplying fresh air.

Safety and health



IntarSANIT ensures the minimum ventilation flow of the work room with fresh air previously filtered and dehumidified, while extracting stale air.

Smart solution



Easy integration in your installation. Minimal cold losses, thanks to the double heat recovery in the extraction air and the use of highly efficient natural refrigerant.


IntarSANIT solutions: Ventilation units for air renewal, intarSANIT – TCH and sterilization units, intarSANIT – TPD.

tch-intarcon
tdp-intarcon

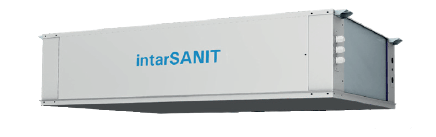

intarSANIT - TCH - Cold room ventilation units

intarSANIT – TCH is the new air conditioning and supply solution for work rooms, with heat recovery from extract air. The ventilation equipment is specifically designed for the supply of fresh air in work rooms and food processing rooms, which operate at a temperature of 10 to 15 ºC, with the following functions:

-Filtration, sterilization and purification of the room air.

-Ventilation flow adaptable to the occupation, and overpressure of the room.

-High energy efficiency with heat recovery in the extraction air.

-Easy ceiling installation.


intarSANIT - TPD - Air purification units

intarSANIT – TPD is the solution for sterilization and air purification in food handling rooms, industrial kitchens, clean rooms and other establishments. The intarSANIT sterilization system inactivates and destroys air microorganisms, such as viruses, bacteria and spores, to prevent their spread to people and food. Ultraviolet irradiation renders the DNA of microorganisms useless, preventing their reproduction. CEN EN 779 HEPA filtration with 99.995 % efficiency in 300 nm particles.

intarSANIT – TPD – compact and lightweight design, with the following characteristics:

-Filtration, sterilization and purification of the room air.

-Double sterilizing effect: UV-C radiation and HEPA filtration.

-Easy ceiling installation.

-Efficient space sweep at low air velocity with laminar flow. Constant flow operation by means of variable speed fan with flow sensor to adjust the revolutions to the pressure drop of the filter.

-Integrated system: Sterilization system integrated in double flow evaporator unit including UV-C ultraviolet lamps and HEPA filter.


intarSANIT – TCH

  • 230 V-I-50 Hz power supply. Others voltages by request.
  • Built-in a white coated aluminium frame.
  • Compact and lightweight design.
  • Adjustable ventilation flow from 500 up to 1 000 m3/h.
  • Compact refrigeration system with natural refrigerant R290.
  • Static and dynamic heat recovery from exhaust air.
  • Air supply and extraction by centrifugal fan for connection to duct or textile diffuse.
  • G4 pre-filter and F7 new air filter.



intarSANIT – TPD

  • 230 V-I-50 Hz power supply. Others voltages by request.
  • Built-in a white coated aluminium frame.
  • Compact and lightweight design.
  • G4 pre-filter.
  • UV-C germicidal irradiation.
  • HEPA filters.
  • Radial variable speed EC fan.

intarSANIT – TCH

► CO2 and VOCs level control.



intarSANIT – TPD

► Carbon filter.
► Cooling coil.
