intartop R-290

ultra slim monoblock

Roof-top monoblock units for small cold rooms for positive and negative temperature with R-290.

Request Technical Advice

Description

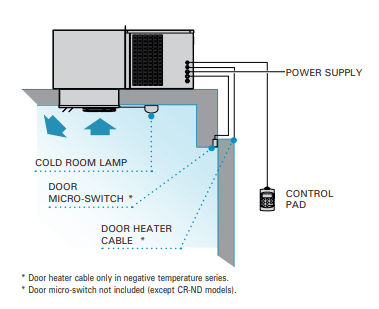

Commercial monoblock units for small-size chiller and freezer cold rooms, for ceiling panel installation.

Intartop R-290 compact is characterized by:

  • R-290 natural refrigerant with high energy efficiency.
  • Tropicalised design for ambient temperature up to 45 ºC.
  • Thermostatic expansion valve.
  • Hot gas defrost with temperature control.
  • Units exempt from leak checks.

Design

This new range of monoblock units incorporates the latest technology components in a very compact size that is integrated into the roof of the cold room.
Its sleek design allows for maximum storage space, and its lightweight structure minimizes thermal bridges and cold losses.

High energy efficiency

In addition to the excellent thermodynamic performance of the R-290 refrigerant, monoblock units integrate low-consumption components, such as electronic fans, LED lighting, or high-efficiency compressors.

Environmental sustainability

R-290 or propane is a hydrocarbon commonly used in domestic refrigeration and small commercial refrigeration applications. Thanks to its low environmental impact and excellent thermodynamic properties, R-290 is the best choice in small cold stores.

Security and reliability

INTARCON monoblock units meet all safety requirements, they have a negligible R-290 refrigerant charge, and feature explosion-proof components and pressure and temperature limiting devices.

  • 230 V-I-50 Hz or 400 V-III-50 Hz power supply. Other voltages by request.
  • R-290 refrigerant load, below 0.2 kg.
  • Hermetic reciprocating compressor.
  • High pressure switch.
  • Thermostatic expansion valve.
  • MCB protection.
  • Hot gas defrost.
  • Stainless steel drain pan.
  • Evaporation of condensed water.
  • Cold room LED light and micro-switch (CR-ND model).
  • Cold room LED light and micro-switch cable (CR-Y/G model).
  • Door heater cable
  • Evaporator case made in sandwich panel, with 50 mm polyurethane insulation, internally covered in steel sheet.
  • Multifunction electronic control.

Option

  • Change to 400 V-III-50 Hz power supply (CR-Y/G models).
  • Door micro-switch (CR-Y/G models).
  • Non-return damper (centrifugal version).
  • Adaptation of air discharge to circular duct (CR-Y/G models).
  • Vertical discharge (centrifugal version).
  • Evaporator coil epoxy anti-corrosion treatment.

en-2021-dimensiones-intartop
